Solar Modules

SMBB Technology

Better light trapping and current collection to improve module power output and reliability

Higher Power Output

Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR

Enhanced Mechanical Load

Certified to withstand wind lead (2400 Pascal) and snow load (5400 Pascal)

Power Output

144 cell module: 515 - 555 W
132 cell module: 475 - 515 W
120 cell module: 425 - 460 W
108 cell module: 385 - 415 W

Core Features

High quality Monofacial Module made with India’s first M10 – 182mm Cell
ARC coated, High Transmission Glass wit6h 3.2 mm for higher energy yield
First year degradation – < 2.0%
Longer performance @ 0.55% degradation year over year with 25 years warranty on power
M10 Gallium-Dopped Wafer ensures superior module efficiency
10% higher power output compared to Poly-Crystalline Module
M10 – 182mm Wafer size

Power Output

144 Topcon Module:560 - 590 W
132 cell module: 485 - 515 W
108 cell module: 385 - 415 W
144 cell module: 530 - 560 W
120 cell module: 435 - 460 W

Core Features

High quality Bifacial Transparent Module made with India’s first M10 – 182mm Cell
ARC coated, High Transmission Glass with 3.2 mm for higher energy yield
First year degradation – < 2.0%
P-Type Bifacial modules up to 70 +-10% Bi-facialty factor
10 Busbar Half-Cut Cells decreases power loss
Excellent Anti-PID performance guarantee via materials control

Power Output

Power Output M10	Power Output G12
144 Topcon Module: 560 - 590 W 144 cell module: 530 - 560 W 132 cell module: 485 - 515 W 120 cell module: 435 - 460 W 108 cell module: 385 - 415 W	132 cell module: 640 - 670 W 120 cell module: 585 - 610 W 108 cell module: 520 - 550 W

Core Features

High quality Bifacial Dual Glass Module made with India’s first M10 – 182mm or G12 - 210mm Cell
ARC coated, High Transmission Glass with 2 mm for higher energy yield
Additional power generation up to 30% as compared with conventional P-type Module
First year degradation – < 2.0%
Longer performance @ 0.45% degradation year over year with 30 years warranty on power
Excellent Anti-PID performance guarantee via materials control
10 & 12 Bus Bar Half-Cut Cells for more power generation

Intelligent, automatic and reliable are the three words that define the circuit breaker range from Havells. A fundamental in every circuitry, circuit breakers play an essential role in safeguarding you and your home from any mishaps due to over current, overload or short circuit. Choose from a range of miniature circuit breakers, high rating MCBs, mini MCB isolators, isolator switching devices and indicator lights and armor yourself. Switchgear covers a range of devices that involve protection of your appliances. They are used to control, master and regulate the electrical power systems

Solar ACDB - is an important part of SPV system. It gives extra protection to the system in case of failures on load side. ACDB is made up of breaker, isolators, voltage and current monitoring etc. To ensure maximum protection to the sophisticated electronic equipment, It has provision for surge protection in the box along with fuses. Also ACDB have energy meter which help you to know how much energy you are using or withdrawing from the solar energy.

Solar DCDB - is used to protect the system if there is any fault during failure on DC side. A very crucial part of SPV system as there should be adequate protection on DC side. The DCDB incorporates isolator/Breaker to switch off the system during fault, there is a meter which tells you exact PV array voltage and current you are getting. It also have surge protection to save your system from any surges occurred due to fault or other phenomenon.

ACDB - DCDB | Switch Gears

CORE ADVANTAGES MODULES TO RELY UPON

SMBB Technology

Higher Power Output

Enhanced Mechanical Load

PID Resistance

Auto Bussing & Soldering Technology

Ideal Usage For

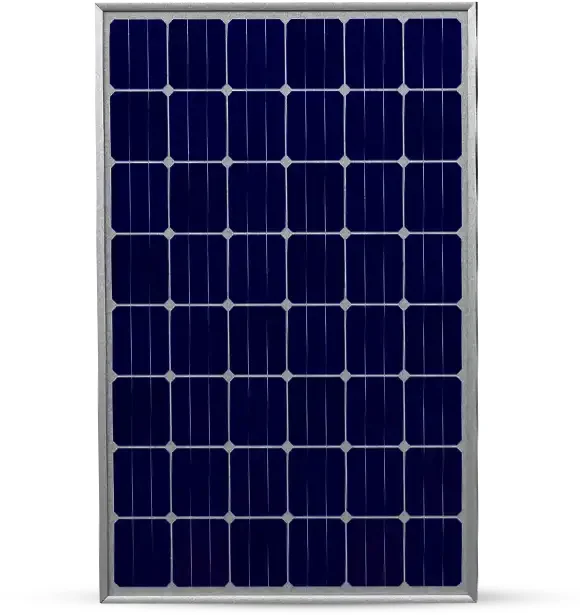

P-Type, Monofacial Module M-10 HC

Mono Perc Module

Power Output

Core Features

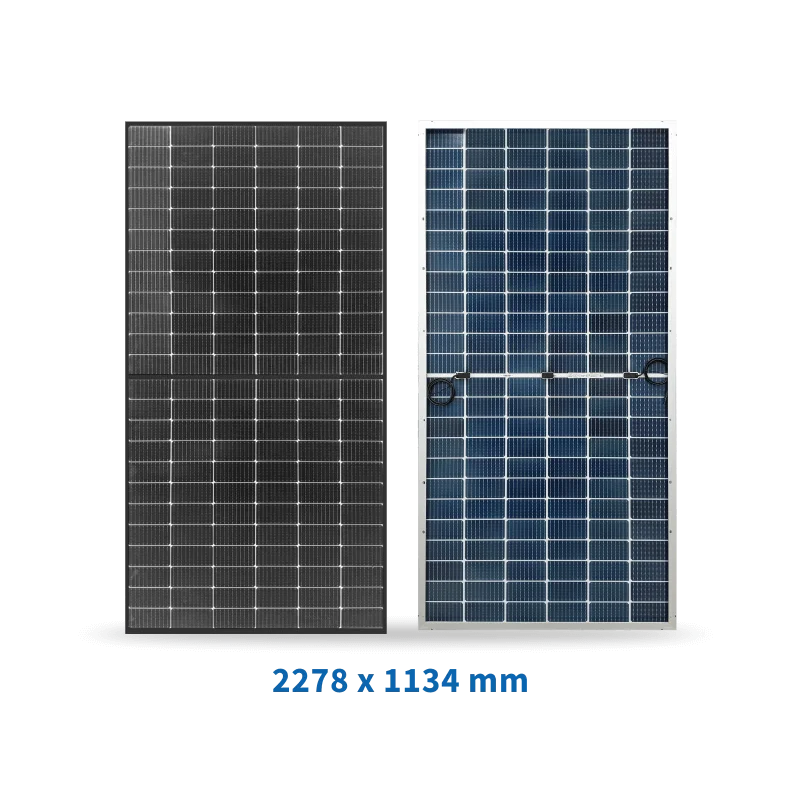

P-Type, Bifacial Transparent Back Sheet Module M-10 HC

Mono Perc Module

Power Output

Core Features

410-555 W

21.48%

30 Years

12 Years

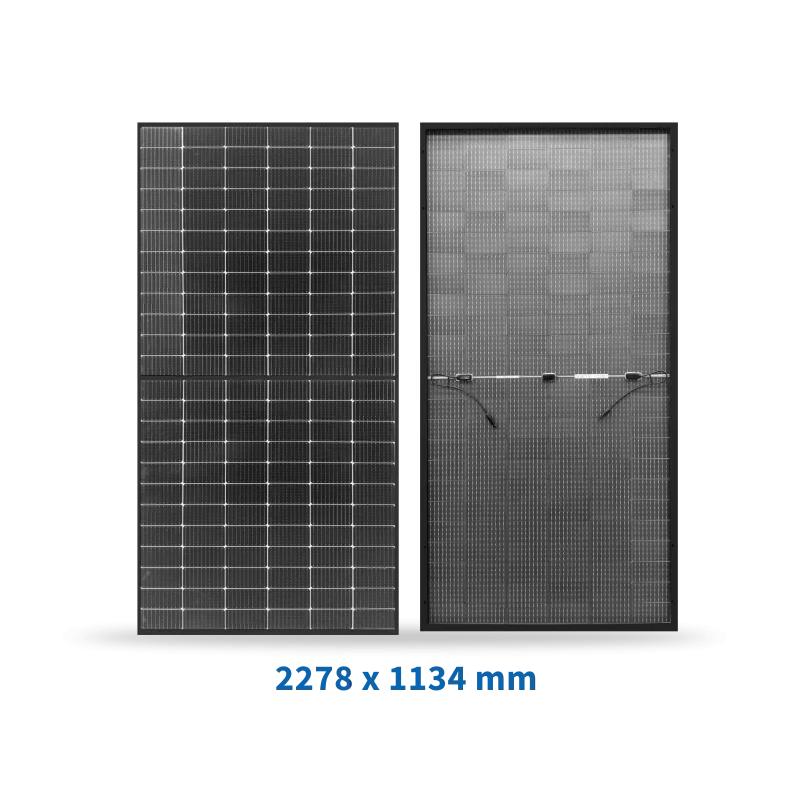

P-Type, Bifacial Dual Glass Module M-10 & G-12 HC

Mono Perc Module

Power Output

Core Features

410-670 W

21.57%

30 Years

12 Years

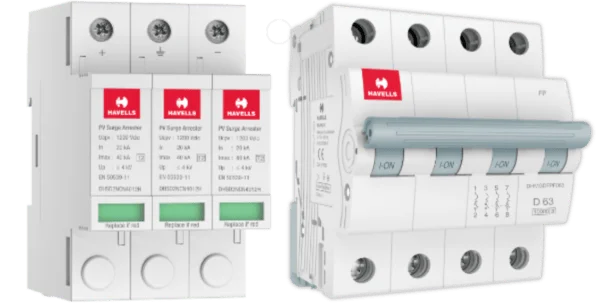

Switch Gears

MCB | RCCB | Isolator | SPD

ACDB - DCDB

Distribution Board
